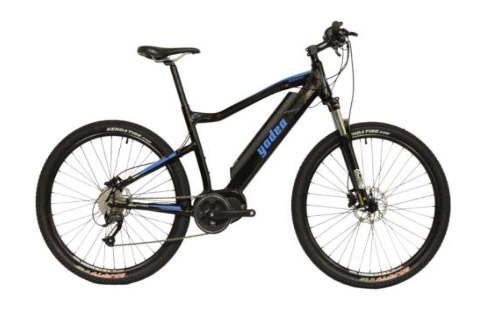

Speedy Series E-FREED SPORT RS900MAX
Speedy combines the sporty character of mountain bikes with the elegance and comfort of the city bikes.
The most innovative thing is that this bike is improved with solution "torque sensor",a sensor that identifies immediately the resistive torque required to start the electric motor within milliseconds.
The most innovative thing is that this bike is improved with solution "torque sensor",a sensor that identifies immediately the resistive torque required to start the electric motor within milliseconds.
| Performance | Main components | |||
| Motor | 25KM/H | Frame | 27.5"*48cm AL6061 M model | |
| Range | 60KM | Tyres | KENDA 27.5"x2.1 K1104A | |
| Max load | 130KG | Rim | HJC Double alloy disc rim | |
| Net weight | 24KG | Front fork | SR suntour XCR 100mm | |
| Gross weight | 29KG | Front brake | SHIMANO M396 Hydraulic disc brake | |
| Dimension | Rear brake | SHIMANO M396 Hydraulic disc brake | ||
| Wheelbase | 27.5"*1092mm | Brake lever | SHIMANO | |
| Packing size | 1470*250*800mm | Rear derailleur | SHIMANO Deore RD-M592 9S | |
| Container | 20FT: 80 pcs SKD 75%包装 | Front derailleur | N/A | |
| 40HQ: 216 pcs SKD 75%包 装 | Shifter | SHIMANO Deore SL-M590R 9S | ||
| Climbing slope | 8°-250Wmotor | 10°-350Wmotor | Gears | SHIMANO CS-HG30-9 9-SPEED |
| Recharge cycles | 4-6H 36V2A | Hub | SHIMANO HB-RM66 CENTER LOCK | |
| charge time | About 800times | Chainring Crank | N/A | |
| Electric system | Handlebar | PROMAX HB3188 700W | ||
| Motor:(Optional) | BaFang MAX DRIVER SYSTEM | Stem | PROMAX MA-47 28.6*110E*10D | |
| N/A | ||||
| Meter(LCD) | BAFANG LCD Mid meter | Seat post | PROMAX 342Q @35 ALLOY | |
| Battery:(Optional) | PowerPack36V11Ah SAMSUNG | Chain | KMC Z99 11/128"*110L 9S Gray/Gray | |
| Chain wheel | N/A | |||
| Mudguard | N/A | |||
| N/A | Saddle | SELLE ROYAL SR-SETA-S1 | ||
| Charger | SANS impulse smart charger | Pedal | WELLGO M21 @9/16" L&R ALLOY | |
| Controller | BAFANG Sine wave controller | Headsets/B.B | VP Integrated Threadless/N/A | |
| PAS | TORQUE SENSOR | Lighting | N/A | |
| Throttle | N/A | Reflector | NEW LAN PMMA material | |
| Carrier | N/A | Rear light | N/A | |
