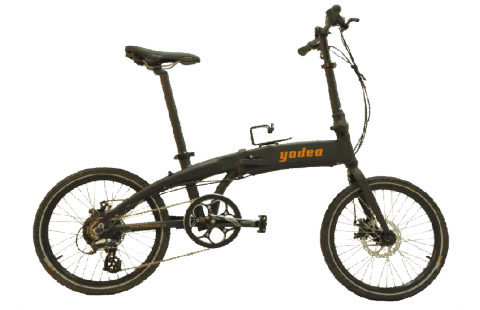

Easy Series YD-EBX805
The foldable frame enables you to bring your ebike in the subway, the bus...., keep it in the truk of your car or even take it home in the elevator. You can bring it everywhere. It is Ideal for executives, students or just comfortable users who use the bicycle for short trips around the city, residential areas or within nearby towns.
| Performance | Main components | |||
| Motor | 25KM/H | Frame | 20 ″*31cm AL6061 M model | |
| Range | 35KM | Tyres | KENDA 20"x1.75 whit Reflective | |
| Max load | 100KG | Rim | HJC Double AL alloy disc rim | |
| Net weight | 20KG | Front fork | Integrated AL alloy front fork | |
| Gross weight | 24KG | Front brake | TEKTRO ARIES Disc brake | |
| Dimension | 1600*580*1100mm | Rear brake | TEKTRO ARIES Disc brake | |
| Wheelbase | 20 ″*1088mm | Brake lever | WUXING cast aluminum | |
| Packing size | 860*370*690mm | Rear derailleur | SHIMANA Altus M310 | |
| Container | 20FT: 114pcs SKD 75%包 | Front derailleur | N/A | |
| 40HQ: 294pcs SKD 75%包 | Shifter | SHIMANO 7S | ||
| Climbing slope | 8°-250Wmotor | Gears | SHIMANO 7S | |
| Recharge cycles | 3-4H 36V1.8A | Hub | JOY Aluminum 36H*13G*QR:112/148 | |
| charge time | About 800times | Chainring Crank | PROWHEEL AL | |
| Electric system | Handlebar | PROMAX AL | ||
| Motor:(Optional) | HENGTAI Rear motor | Stem | 3D forged folding stem | |
| N/A | ||||
| Meter(LCD) | LED Three grade transmission function | Seat post | ZOOM alloy seat post | |
| Battery:(Optional) | PowerPack280Wh SAMSUNG | Chain | KMC Z51 7S chain | |
| Chain wheel | N/A | |||
| Mudguard | N/A | |||
| N/A | Saddle | SELLE ROYAL | ||
| Charger | SANS impulse smart charger | Pedal | VP Aluminum | |
| Controller | Sine wave controller | Headsets/B.B | VP Integrated Threadless/N/A | |
| PAS | Intelligent 1:1 assist system | Lighting | N/A | |
| Throttle | N/A | Reflector | CATEYE PMMA material | |
| Carrier | N/A | Rear light | LED light | |
